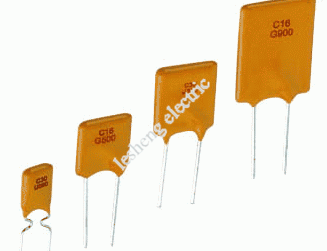

PTCs 自復聚合物保護器RESETTABLES
30R(30C)系列,徑向引線(xiàn)式,30V
端腳材料:
30R090-250鍍錫銅包鋼,
24AWG(0.508mm直徑),
30R300-900鍍錫銅線(xiàn),
20AWG(0.831mm直徑)
端腳焊接:按軍標一202,方法208E
涂層:熱凝涂層
訂貨資料:
| 目錄號 | "A"(最大) | "B"(最大) | "C"(典型) |
Ihold (A) |
Itrip (A) | 電壓(Vdc) |
Imax (A) | Pd(最大) (W) | 最大斷路時(shí)間 | 電阻 | ||
| (A) | (SEC) | RIL(ohms) | RAT(ohms) | |||||||||
|
30R(C)090 30R(C)110 30R(C)135 30R(C)160 30R(C)185 30R(C)250 30R(C)300 30R(C)400 30R(C)500 30R(C)600 30R(C)700 30R(C)800 30R(C)900 |
6.60 6.60 8.89 8.89 10.16 11.43 11.43 13.97 13.97 16.51 19.05 21.59 24.13 |
12.19 14.22 13.46 15.24 15.75 18.29 17.27 20.07 24.89 24.89 26.67 29.21 29.72 |
5.08 5.08 5.08 5.08 5.08 5.08 5.08 5.08 5.08 10.16 10.16 10.16 10.16 |
0.90 1.10 1.35 1.60 1.85 2.50 3.00 4.00 5.00 6.00 7.00 8.00 9.00 |
1.80 2.20 2.70 3.20 3.70 5.00 6.00 8.00 10.0 12.0 14.0 16.0 18.0 |
30 30 30 30 30 30 30 30 30 30 30 30 30 |
40 40 40 40 40 40 40 40 40 40 40 40 40 |
0.6 0.7 0.8 0.9 1.0 1.2 2.0 2.5 3.0 3.5 3.8 4.0 4.2 |
4.50 5.50 6.75 8.00 9.25 12.5 15.0 20.0 25.0 30.0 35.0 40.0 40.0 |
5.9 6.6 7.3 8.0 8.7 10.3 10.8 12.7 14.5 16.0 17.5 18.8 20.0 |
0.070 0.050 0.040 0.030 0.030 0.020 0.020 0.010 0.010 0.005 0.005 0.005 0.005 |
0.22 0.17 0.13 0.11 0.09 0.07 0.08 0.05 0.05 0.04 0.03 0.02 0.02 |
(20℃的環(huán)境溫度)
